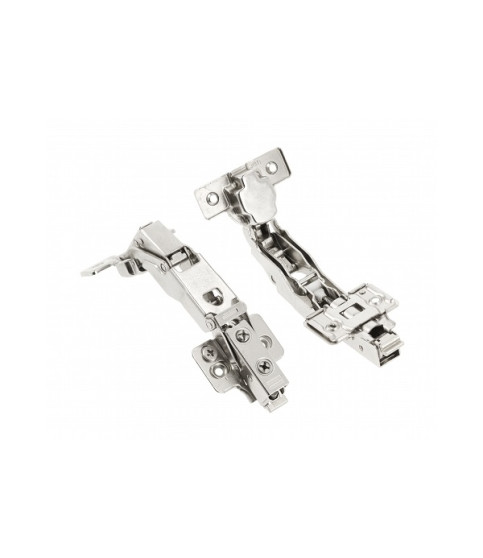

Overlay hinge SILENTO PRO, 155° angle, with soft-closing damper, prow H=0.3D, polybag, clip-on, without Euro screw.
- Brand:: GTV
- Product Code: ZM-HCSLKT155-3DBEO
- Availability: In Stock
Product description
The mortise hinge from the Silento PRO family has an extraordinary strength of 80,000 cycles, which is confirmed by the SGS certificate. Built-in silent close function ensures quiet and safe operation. The product is distinguished by eccentric depth adjustment, integrated in the hinge arm and CLIP-ON chain mounting, which facilitates installation. It is complemented by a two-stage spring that protects adjacent furniture and the wall. An eccentric adjustable chain is included, giving you full 3D adjustment.
Product specifications
MATERIAL STEEL
COLOUR nickel
FINISH nickel, ZnAl
HINGE CUP DIAMETER [MM] 35
INTEGRATED MECHANISM Silent closing
HOW TO CONNECT THE ARM TO THE CHAIN Clip-on
GUIDE SHAPE cross
3D ADJUSTMENT yes
ECCENTRIC HEIGHT ADJUSTMENT yes
ECCENTRIC DEPTH ADJUSTMENT yes
FRONT MOUNTING for screws
INDIVIDUAL PACKAGING yes
ACTION double
KIT CONTENTS 1 pc Guide, 1 pc hinge
EUROSCREWS INCLUDED no
SCREWS INCLUDED yes
HINGE TYPE angular, Applied
Tags: Overlay hinge SILENTO PRO, 155° angle, with soft-closing damper, prow H=0.3D, polybag, clip-on, without Euro screw., ZM-HCSLKT155-3DBEO, SILENTO PRO
